STRIAE, POLISH, IMPRINTS, ROTATED FRACTURES, AND RELATED
FEATURES FROM CLASTS IN THE PUERTO MINGUEZ IMPACT EJECTA
Ferran Claudin 1, Kord Ernstson 2,
Michael R. Rampino 3, Francisco Anguita 4
1 IES Giola, 2 Fakultät für
Geowissenschaften, Universität Würzburg, 3 New York University & NASA
Goddard Institute for Space Studies,
4 Departamento de Petrología y Geoquímica, Universidad
The Puerto Mínguez (Fig.1) was first described as the
location of an "enigmatic" deposit of Paleozoic quartzite clasts . By road
construction meanwhile continuously exposed over 5 km length, the deposit is now
considered part of an enormous impact ejecta blanket around the Azuara and
Rubielos de la Cérida twin impact structures [2, 3].

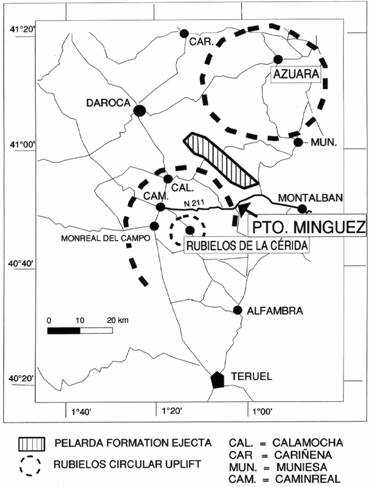

Fig.1. Location map for the Puerto Mínguez.
Encircled are the Azuara and Rubielos de la Cérida impact structures.

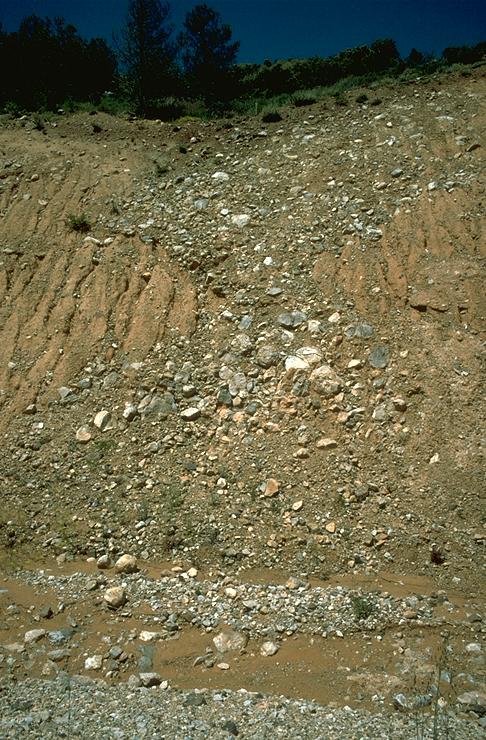

Fig.2. Typical diamict aspect of the impact ejecta.
Stratigraphically, the Puerto Mínguez deposits consist of
uncemented and frequently intermixed Paleozoic, Mesozoic, and Lower Tertiary
material. The mixed cobble and block components show variable morphology (well-rounded,
sub-rounded, and angular), and are supported by a sandy and marly matrix.
Megablocks with preserved stratification and original characteristics are also
intermixed within the deposit.
Fig.3. Mesoscopic deformations in the Puerto Mínguez impact ejecta:
Striae, grooves, polish, imprints, and faceted sculpture.
Most of the pebbles, cobbles and blocks are strongly deformed
(Figs.3-5). They show striations all around (including nailhead striae),
penetration marks, deep grooves, rotated fractures, and irregular fractures with
complex bifurcations. An intense internal torsion of many cobbles and blocks is
documented by hinges and rotated fractures (Fig.4). The rotated fractures (first
described for the Pelarda Fm. ejecta ), may result from pure torsion, or from
a superposition of torsion and tension. Fractured components frequently resemble
bread cut into slices, but the clasts remain coherent (as do the clasts with the
rotated fractures), and are not broken into pieces (Fig.5).

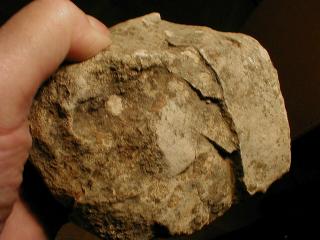

Fig.4. Rotated fractures in clasts from the Puerto Mínguez ejecta.
Fig.5. "Bread-cut-to-slices" features in a clast from the Puerto Mínguez ejecta (left) and
from the Ries Crater Bunte Breccia ejecta
(Belemnite rostra and carbonate concretion, middle and right).
Conclusions. - From the analysis of the lithologic
characteristics, surface features, and intense deformations of the components
and the matrix of the Puerto Minguez deposits, we conclude that the origin of
these features is connected with simultaneous plastic and brittle deformation,
acting rapidly, and under high contact pressure between the matrix and larger
components. Especially the rotated fractures and the "bread-cut-to-slices
features" are regarded as typical of dynamic, rapid deformation. Deformations as
observed at the Puerto Mínguez occur under high confining pressure in an impact
event and are observed in other impact ejecta (e.g., the Ries Crater (Fig.5),
the Azuara and the Chicxulub impact structures) [4-6, and others]. They are not
compatible with an origin from fluvial deposition, quasi-static tectonics, the
action of glaciers, or syn-tectonic sedimentation .
The observations and analyses presented here may serve as a
strong diagnostic tool for impact-related diamictites.
References:  Moissenet, E. et al. (1972)
Melanges casa Velazquez, 8: 1-47;  Ernstson, K. et al., 1985,
Earth Planet.Sci.Let., 74, 361-370  Ernstson, K. et al., this workshop;
Ernstson, K. and Claudin, F., 1990. N.Jb.Geol.Paläont.Mh., 1990, 581-599;
Rampino, M.R. et al. (1997) Abstracts Conference on Large Meteorite
Impacts & Planetary Evolution, Sudbury, Ontario, Canada;  Chao, E.C.T.
(1976) Science, 194: 615-618;  Casas, R. et al. (2000)
Geodinamica Acta , nº , 1-17.
